Rapid Shutdown Device YHQ-460/600

Rapid Shutdown Device YHQ-460/600 the safety of first responders, avoid potential fines, and comply with NEC 2017 690.12 with this Rapid Shutdown Device. The YHQ-460/600 is easy to install and compatible with a wide range of solar PV systems. It shuts down DC power to comply with rapid shutdown requirements in the case of emergencies or maintenance. This device is UL listed, NEMA 4X rated, and operates at up to 600V and 60A. Protect your assets and be sure to comply with local regulatory requirements.

Specifications

□ 3% ~ 25% optimization, retrieve power generation loss

□ Δ < 10℃ Anti-Hotspot, more safe and durable

□ Applies to all types of modules, Optimization +Voltage Limiting +Anti-Hotspot

□ Based on power optimization chip, eliminate panel or cell level mismatch

□ Solve the current mismatch issues caused by shading  gradients, aging variations, temperature gradients, soiling gradients, etc

□ Optimize power generation, lower LCOE, improve solar system reliability, extend the service life of module

□ TUV Certification

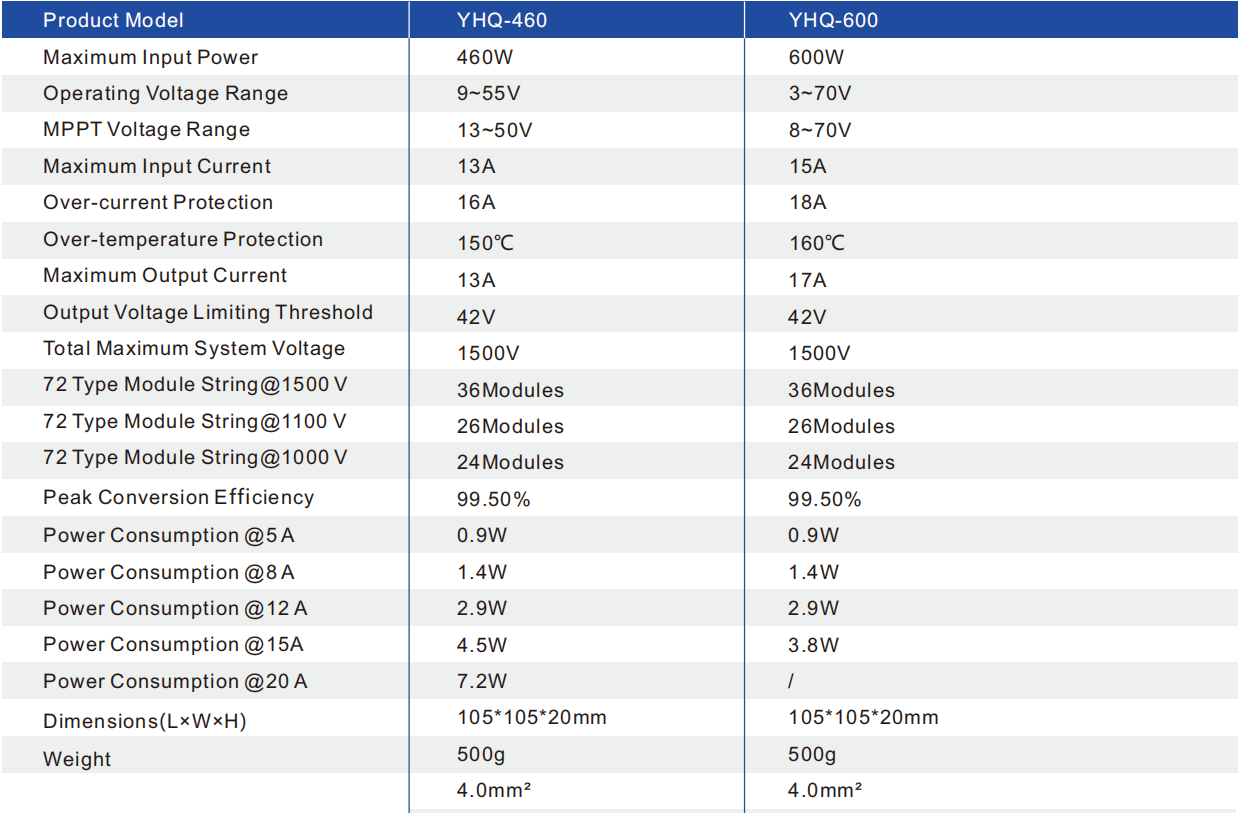

Parameters
